Large Format Printers For Professionals

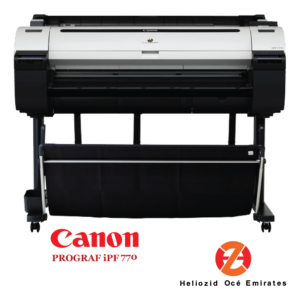

Canon IPF 770

The imagePROGRAF 770 is the entry level CAD plotter capable to produce an A1 drawing in Draft mode in approximately 25 seconds by using Canon’s L-COA Processor.  This unit uses a High-Density Print Head to create detailed prints with a resolution of 2400 x 1200 dpi on documents up to 36″ wide


  • High-volume continuous printing
  • Streamlined 36” body
  • Faster carriage speed
  • Clearer quality on CAD drawings and HP-GL/2 compatible
  • LUCIA 5-colour ink system
  • New magenta ink for broader colour reproduction
  • 130ml hot-swap ink tanks
  • Direct Print & Share software
  • Cloud ready
  • Accounting tools


Printer Type5 Colour – 36"/914.4 mm
Print TechnologyCanon inkjet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Number of NozzlesTotal: 15,360 MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Print Resolution2,400 x 1,200dpi
Ink TypeDye/Pigment Reactive Ink
Dye: Cyan, Magenta, Yellow, Black
Ink Droplet Size4 Picoliter per colour
A0 Size, Plain Paper0:48 min (Fast Economy Mode), 0:48 min (Fast Mode), 1:15 min (Standard Mode)
A0 Size, Coated Paper1:15 min (Fast Mode), 2:24 min (Standard Mode), 3:50 min (High Quality Mode)
Borderless Printing
Width (Roll Only)
10" (254 mm), B4 (257 mm), A3 (297 mm), Banner (300 mm),
14" (356 mm), A2 (420 mm), A2+/17" (432 mm), B2 (515 mm),
A1 (594 mm), 24" (610 mm), B1 (728 mm), A0 (841 mm), 36" (914 mm)
