Large Format Printers For Professionals

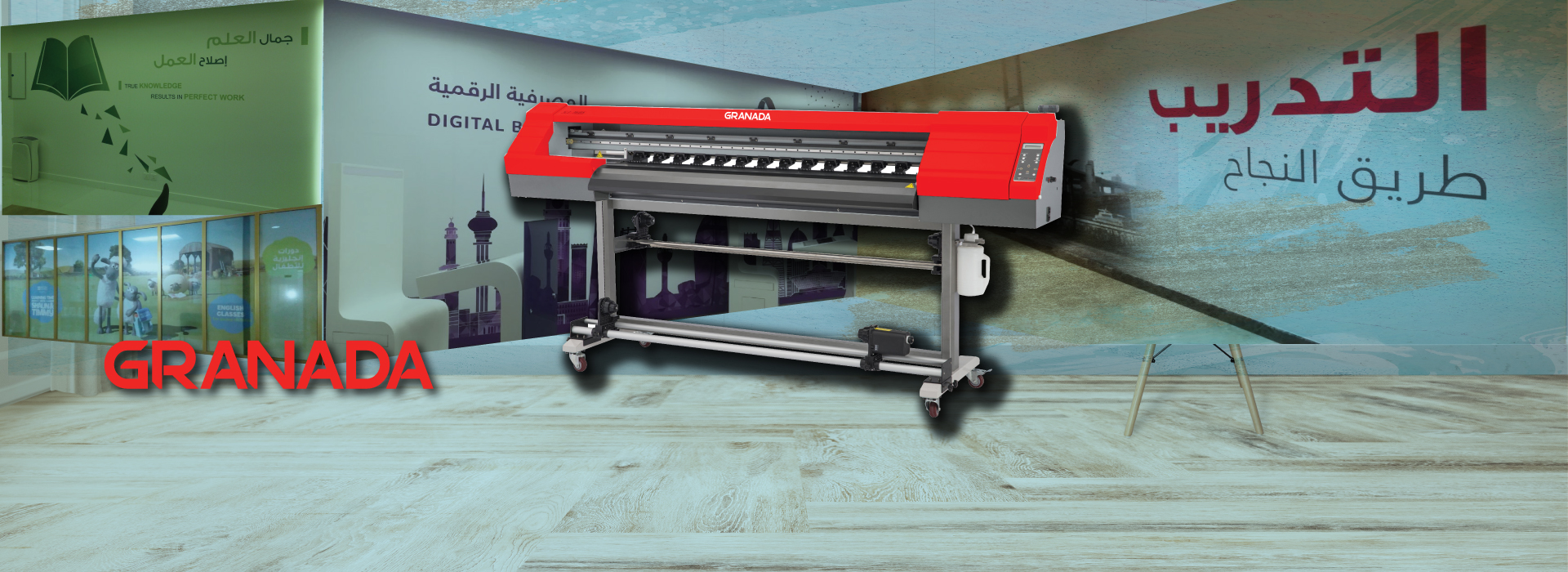

Granada ES 1605

With its economical, user-friendly and environmental friendly this eco-solvent printer of Granada Technology has gained a good reputation in the AD & SIGN industry and performed successfully in the printing business.

Economical and Highly Cost-effective

To get rid of all the complicated procedure Granada ES 1605 is Installation, Operation and Maintenance Friendly Printer.


  •  Adopted Epson DX5 Micro Piezo Electric Printheads Maximum Precision as 1440dpi .
  • Combination of multiple three level changeable Ink Dots guarantee high color saturation of the output and truly realize controllable ink points and gray scale printing. Professional multi-level feather function guarantees the print picture free of cross strips.
  • Ink absorption of materials improved through installed front, middle, back controllable heating devices. The quick drying of output is guaranteed by the auxiliary infrared heating and fan drying devices.
  • Automatic Damping Feeding and Take-up System guarantees the smooth and reliable material output.
  • The linear mute guide rail from THK in Japan or HIWIN in Taiwan guarantees the smooth and steady movement of the Printheads for its long service life and low noise.
  • Safe and reliable passive lifting cleaning mechanism, with Peristaltic Ink Pump that greatly prolongs the service life of Printheads.
  • The distance between Printheads and Material can be adjusted by hand between 0 ~ 2 mm according to material thickness.
  • The high power DC Servo Motor together with the high precision grating closed loop positioning guarantees the precise ink droplet during the printing process.


Printhead5th Generation Micro Piezo Electric Printhead(DX5)
180 Nozzles x 8 rows x 2 CMYK 4 Color (1440 Nozzles) 1440dpi
Print Technology 720 x 720dpi = 18sqm / hour (4 pass)
720 x 1080dpi = 13sqm / hour (6 pass)
720 x 720dpi = 9sqm / hour (8 pass)

Maximum Print Width = 1600mm
Maximum Material Width = 1680mm
Material Type = Vinyl, Photographic Paper, Film, Wallpaper,
Banner, etc..

Ink Supply SystemECO-Solvent , Water-based Sublimation Ink
Ink ColorC,M,Y,K
Supply ModeContinuous Ink Supply System (CISS)
Heating SystemThree Phase Heating (Front, Middle, Back Heating)
