Large Format Printers For Professionals

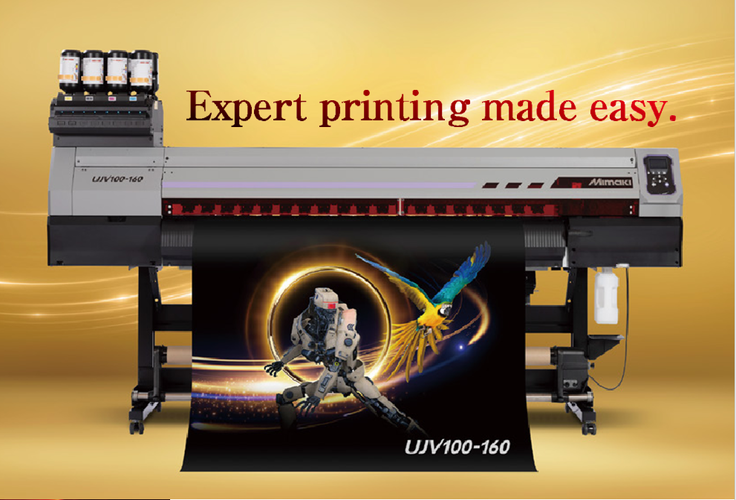

Mimaki UJV100-160

The UJV100-160 is a high-speed UV LED inkjet printer mounted with two newly developed printheads to deliver high image quality with max. print resolution of 1200 dpi and max. print speed of 23m2/h.* It is equipped with the DAS (Dot Adjustment System), which automatically adjusts the media setting and various other functions that make it possible to execute a fine and stable output with simple operations, based on more than 15 years of experience and knowledge of Mimaki, an expert in UV printing technology, while focusing on image quality and productivity. Since the LUS-170 UV curable ink for UJV100-160 can be processed without waiting for the drying time, so indoor signs, POPs and stickers can be finished quickly and also suitable for high visibility window displays, decorative transparent acrylic panels, and vivid signage such as light boxes. It can be used with commercially available media like paper and PET film without an ink receiving layer, which helps to reduce the material cost. Furthermore, this ink is VOC-free and environmentally friendly.
The UJV100-160 is well-balanced in every aspect of productivity, operability, work efficiency, and environmental friendliness at an affordable price, and will contribute greatly to the expansion of your business.
Print speed by 4C at draft mode (360×900 dpi 6P Bi)


  • Improves reproducibility of special effects (such as transparency) of PDF data
  • Increases RIP processing speed of PDF data by 25% on average
  • Prints out the variable data by Variable print function
  • Displays frequently used setting and pop-up windows
  • PDF data with a lot of special effects embedded
  • Variable print function
  • Easy-to-check displays


Print headOn-demand piezo head (double head staggered layout)
Printing resolution360 dpi, 720 dpi, 900 dpi, 1200dpi
Ink Type/ColorUV-curable ink LUS-170(C,M,Y,K,W,CL)
Ink Capacity1L bottle
Maximum drawing range1,610 mm (63 in)
Media Maximum width1,620 mm (64 in)
Media Thickness1.0 mm or lower
Media Roll diameterφ250 mm or less
Media Roll weight45kg (99 lb) or less
InterfaceUSB2.0 / Ethernet
Power specificationsSingle-phase AC100-120V / AC200-240V±10%, 50/60Hz±1Hz
Power consumptionAC100V: 1,440 kW or less / AC200V: 1.92kW or less
Operational environmentTemperature: 20-30 degC (68-86 degF) Humidity: 35-65%Rh (without condensation)
External dimensions (WxDxH)2,775 x 700 x 1,475 mm (109 x 28 x 58 in)
Main unit weight167 kg (368 lb)
