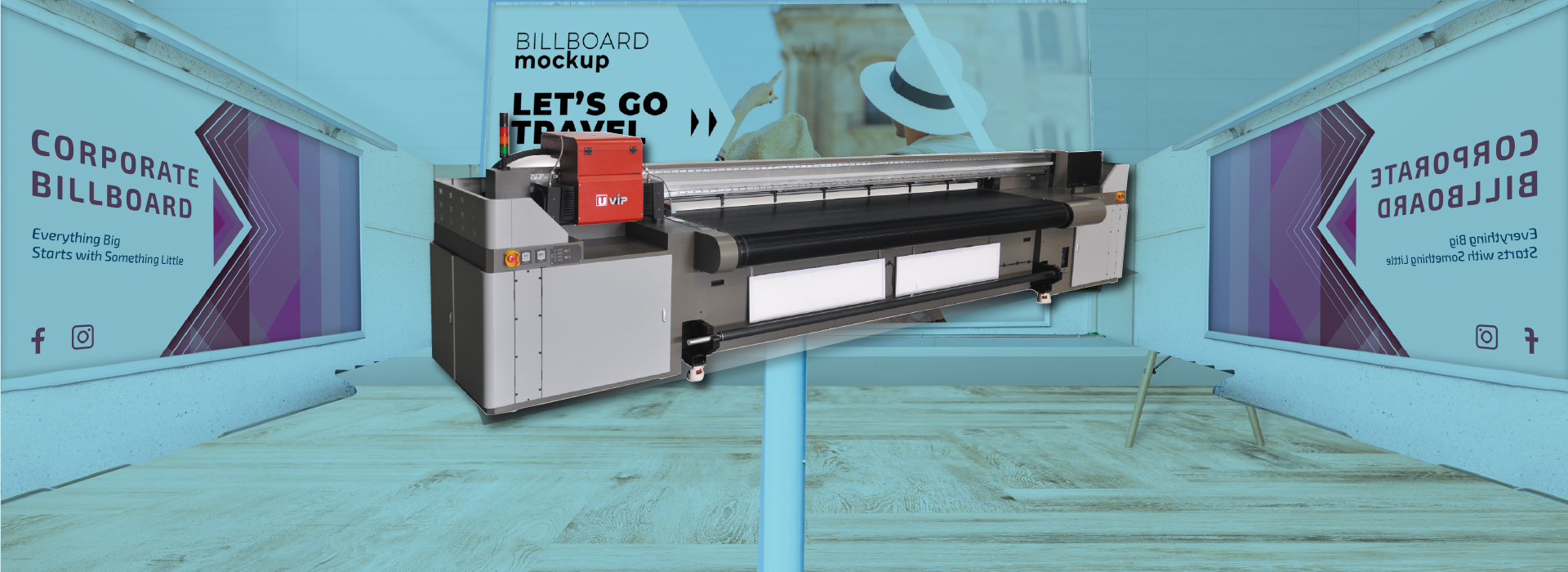

UVIP Hybrid UV R2R 3.3m Printer
The UVIP Hybrid UV 3.3m roll-to-roll allows high-quality continuous printing on Roll material such as Soft film, Backlit Materials, Clothing, Car Sticker, Advertisement material, etc. With a maximum printing width of 3.3 meter, the UVIP Printer provides high productivity printing.
High resolution, Cost-efficient and Economical UV roll to roll Printer.
Features
- All steel industrial level and well withstanding Abrasion, Over 10 years super long life Printhead.
- 1280 Nozzles in 4 Rows, 320 Nozzles each, Nozzle Width is 54.00mm.
- 4pl up to 7pl Ink drop volume.
- 600dpi Printhead Physical Resolution, Fire frequency: 30KHz
- 4 or 6 Colors, with White or Varnish (Optional). Imported LED UV Lamp.
- Tension Media Feeding & Take-up System Ideal for soft film printing
Specifications
| Print Head Quantity | KYOCERA 8 pcs (2 / 4 / 6 pcs Optional) |
| Printing Width | 3.2m ( Unlimited Height ) |
| Printing Thickness | >100 mm |
| Lamp | Mercury UV Lamp / LED UV Lamp (Optional) |
| Ink | CMYK, LC, LM, White, Varnish, UV Ink |
| Media Type | Almost all medias and materials could be printed: Metal Plate, GLasses, Wooden Board, Textile, Leather, Vinyl, Wall Paper etc. |
| RIP Software | PHOTOPRINT (Standard) CALDERA / ONYX (Optional) |
